3003 Series - 3 barrel for Porsche, Ferrari, & Lamborghini

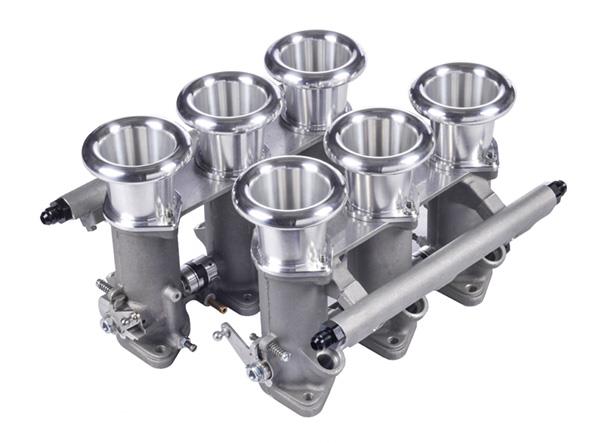

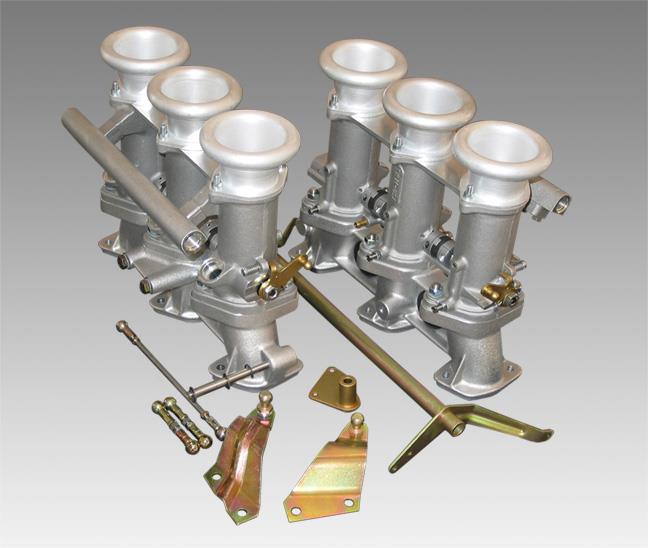

Borla Induction 3003 Series units are a direct replacement for downdraft IDA 3C carburetors as fitted to early Porsche 911, Ferrari 512 and Lamborghini models. The barrel centers are at 94 mm and the overall height is 123.5 mm. The manifold mounting flange is identical to the flange on the Weber IDA 3C. The air filter flange differs from the carburetor in that it uses 6 mm studs which are 1 mm further apart than the carburetor. Each barrel has an air by-pass screw.

MAP sensor ports are provided on both units. There are integral mounts for the fuel rail which is supplied with the unit. AN-6 threads are in each end of the rail for which a specific fitting, part number 206138, is available. The right hand unit incorporates a shaft with a single 5/16 " D-drive and mounting pad for Borla Induction and other throttle position sensors.

A 62mm tall air horn (part number 201088) is available for the 46mm throttles (This is the same height as the stock Weber horn)


The throttle position sensor for the Borla 3 barrel throttle is part number 206017
